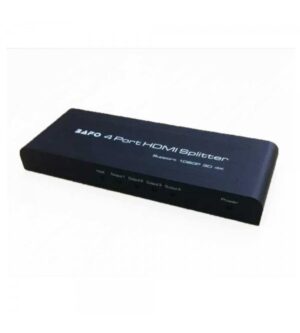

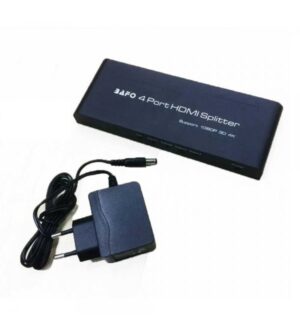

HDMI Splitter 4-Output 1-Input (BAFO)
Rp100.000
Included
- 1x Unit HDMI Splitter 4-Input 1-Output (BAFO)
- 1x Kabel Power
Description
- BAFO P/N : A5-0004B1-001
- HDMI version : HDMI 1.4a
- HDMI resolution : 24/50/60fs/1080p/1080i/720p/ 576p/576i / 480p / 480i
- Support video color format 24bit/deep color 30bit, 36bit, 48bit
- Support audio format : DTS-HD/Dolby- true HD / LPCM7.1/ DTS / Dolby – AC3 / DSD HD (HBR) .
- 340MHz Max bandwidth
- Max baud rate : 10.2Gbps
- Input/Output TMDS signal : 0.5-1.5volts p-p(TTL)
- Input/Output DDC signal : 5Volts p-p(TTL)
- Input cable distance : ≤ 8 m HDMI AWG26
- Output cable distance : ≤ 8 m AWG26 HDMI standard cable
- Max working current Power adapter format.
Input: AC(50Hz, 60Hz) 100V-240V: Output: DC5V/2A - Operating Temperature range(-15 to +55 C)
- operating Humidity range 5 to 90%RH (No Condensation)
- Dimension(L x W x H) : 180 x 68 x 21 (mm)
- Weight : 320 G
